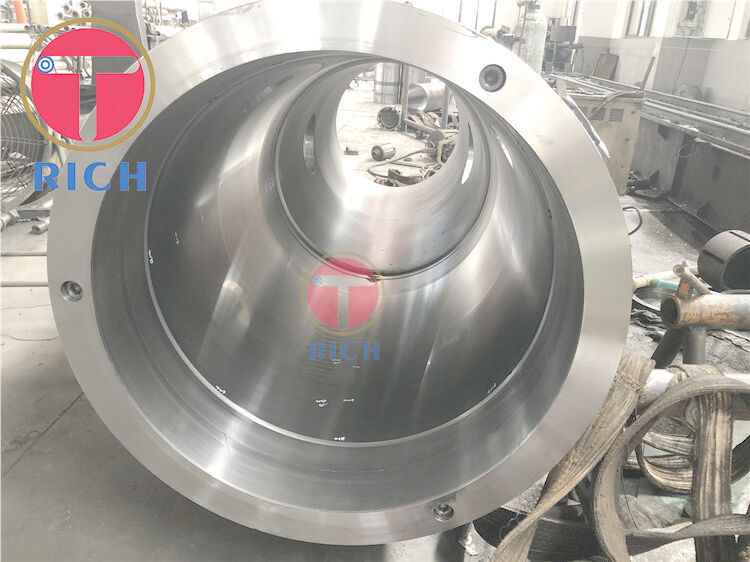

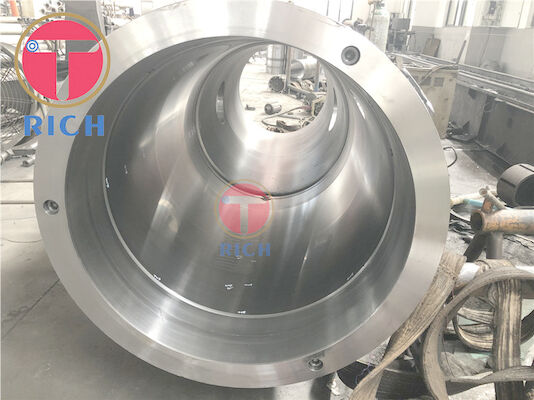

TORICH EN10305 E355 ST52 H8 Honed Tube

TORICH EN10305 E355 ST52 H8 Honed Tube

MOQ: 5Tons
Price: USD900-1200
Standard Packaging: Hydraulic Cylinder Honed Tube Packing: antirust protection, In hexagon bundles, in wooden box
Delivery Period: 45-50 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union,
Supply Capacity: 3000 Tons per Month
Detail Information
Place of Origin
Zhejiang, China (Mainland)
Brand Name
TORICH
Certification
ISO9001
Model Number
EN10305
Surface:
Bright
Shape:
Round
OD:
5-420mm
WT:
0.5-50mm
Material:
SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
Usage:
Hydraulic Cylinder
Highlight:

TORICH Honed Tube

,

EN10305 Honed Tube

,

H8 Honed Tube

Product Description

Product Description

TORICH Hydraulic Cylinder Tube E355 ST52 H8 Honed Tube

Manufacture Method:

Cold drawn, hot rolled+deep hole bored


Certification:

ISO9001, SGS,



Material:

Carbon steel,alloy steel, stainless steel



Standard&Grade:

DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.



Size Range:

ID of 300mm max for cold drawing,

ID of 500mm for deep hole boring



ID Tolerance:

ISO H8



End finish:

Plain ends with square cuts,free of burrs



Bore Roughness:

Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes


End finish:
Plain ends with square cuts,free of burrs



Usage:
Hydraulic cylinder, Pneumatic Cylinder



Product Feature:

1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )



1.+C /BK

No heat treatment after final cold drawing process.



2.+LC/BKW

After the final heat treatment there's a suitable drawing pass.



3.+SA/BKS

After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.



4.+A/GBK

After the cold drawing process the tubes are annealed in a controlled atmosphere.



5.+N/NBK

After the final cold drawing operation the tubes are normalized in a controlled atmosphere.


Products Show

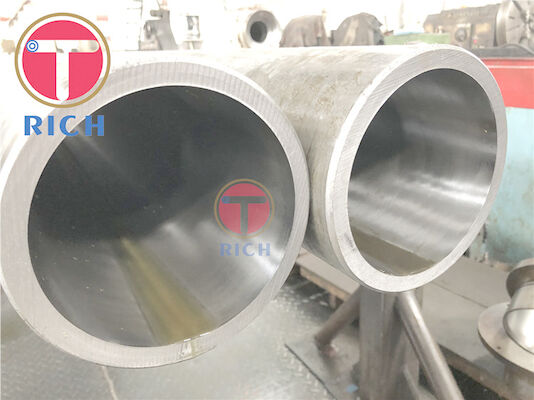

TORICH EN10305 E355 ST52 H8 Honed Tube

Tubes Maching

ID Honing

Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :
1.Smooth surface finishes inside bores
2.Hold precise tolerances on bore diameters

ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm

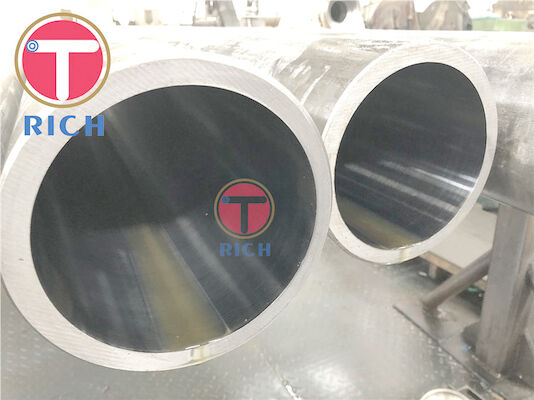

TORICH EN10305 E355 ST52 H8 Honed Tube



Roller Burnish+ Skiving

Two thin chips are cut at high feed rate while the tool passes through the workpiece.producing super finish surface,with a bore precise tolerance .

ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm

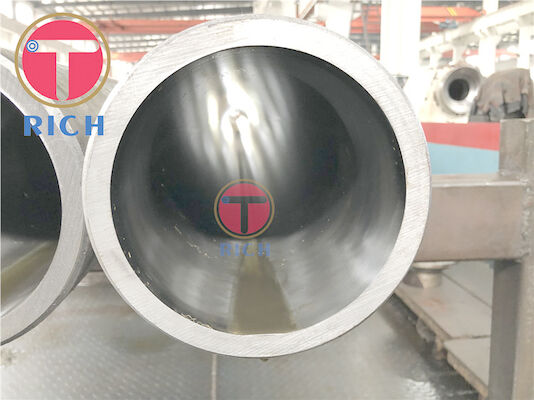

TORICH EN10305 E355 ST52 H8 Honed Tube


QUALITY CONTROL

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



Packing & Delivery


Packing Details : In bundles or in wooden boxes packaging of honed tube
Delivery Details : 30-60days
TORICH EN10305 E355 ST52 H8 Honed Tube

In hexagonal bundles packaging with woven

In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .

TORICH EN10305 E355 ST52 H8 Honed Tube

In wooden boxes.

Solid packaging ,protecting tubes from damages much better.

TORICH EN10305 E355 ST52 H8 Honed Tube
In poywooden packaging,It cut the packaging costs also it can protect tubes well

ASTM A519 Hydraulic Cylinder Alloy Steel Mechanical Honed Tubing

TORICH EN10305 E355 ST52 H8 Honed Tube
In bundles with end caps.well protect tubes from rust.

TORICH EN10305 E355 ST52 H8 Honed Tube
Carton Packing suit for the cutting length

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of honed tube ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
