| Brand Name: | TORICH |
| Model Number: | DIN2391-2 |
| MOQ: | 1 Ton |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000 Tons/Year |

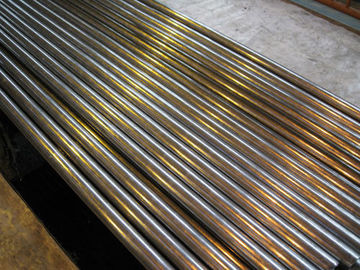

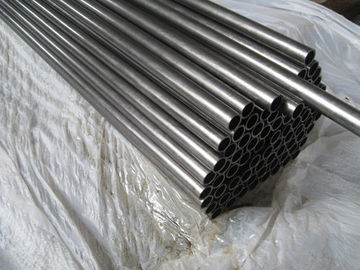

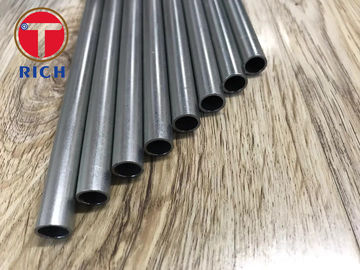

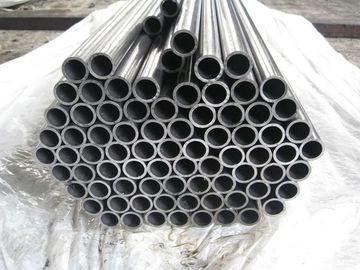

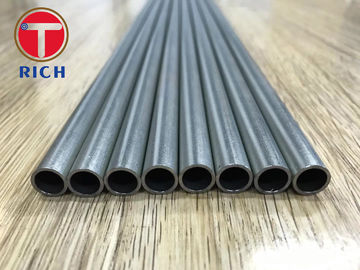

DIN2391-2 ST35 Cold Drawn Precision Seamless Steel Tube for Hydraulic Cylinder
| product | DIN2391-2 ST35 Cold Drawn Precision Seamless Steel Tube for Hydraulic Cylinder |
| outer diameter | 5-120mm |
| wall thickness | 0.5-20mm |
| tolerance | less than +/-0.05mm |
| length | 2-8m |
| character | fine finish outside and inside, smooth surface, high precision, oil surface prevent rust , produce as customers' drawing |
| standard | DIN2391-2 |
| usage | machinery,damper,automobile fittings, metal products, refrigeration facilities, fasteners, ironware and so on |
| min order quantity | 5 ton |
| packing details | water proof bags or as required |
| delivery time | 20-30 days |
| payment term | L/C, TT |
| supply ability | 1000 ton per month |
Characters:
1,high temperature strength
2,high temperature correrosion resistance
3,good weldability
Application:frequently used in rings , steel ball,roller,and also made into all kinds of machine parrs that require high strength,high toughness,high abrasive resistance such as Spiral gauges and so on and so forth
Referenced Documents
1)ASTM Standards:
A29/A29M Specification for General Requirements for Steel Bars, Carbon and Alloy, Hot-Wrought
A751 Test Methods, Practices, and Terminology for Chemical Analysis of Steel Products
E45 Test Methods for Determining the Inclusion Content of Steel
E112 Test Methods for Determining Average Grain SizeE381 Method of Macroetch Testing Steel Bars, Billets,Blooms, and Forgings
E1019 Test Methods for Determination of Carbon, Sulfur,Nitrogen, and Oxygen in Steel, Iron, Nickel, and CobaltAlloys by Various Combustion and Fusion TechniquesE1077 Test Methods for Estimating the Depth of Decarbur-ization of Steel Specimens
2)ISO Standard:
ISO 683 Part 17: Ball and Roller Bearing Steels
| Steel Grade and Chemical Compositions: | |||||||
| Steel | C | Mn | P | S | Si | Cr | Mo |
| Grade | max | max | max | max | min | ||
| 1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Grade | condition | Ultimat | Yield | Elongation | Rockwell |
| Strength | Strength | Hardness | |||
| ksi Mpa | ksi Mpa | % | B Scale | ||
| 1020 | HR | 50 345 | 32 221 | 25 | 55 |
| CW | 70 483 | 60 414 | 5 | 75 | |
| SR | 65 448 | 50 345 | 10 | 72 | |
| A | 48 331 | 28 193 | 30 | 50 | |
| N | 55 379 | 34 234 | 22 | 60 | |
| 1025 | HR | 55 379 | 35 241 | 25 | 60 |
| CW | 75 517 | 65 448 | 5 | 80 | |
| SR | 70 483 | 55 379 | 8 | 75 | |
| A | 53 365 | 30 207 | 25 | 57 | |
| N | 55 379 | 36 248 | 22 | 60 | |
| 1035 | HR | 65 448 | 40 276 | 20 | 72 |
| CW | 85 586 | 75 517 | 5 | 88 | |
| SR | 75 517 | 65 448 | 8 | 80 | |
| A | 60 414 | 33 228 | 25 | 67 | |
| N | 65 448 | 40 276 | 20 | 72 | |
| 1045 | HR | 75 517 | 45 310 | 15 | 80 |
| CW | 90 621 | 80 552 | 5 | 90 | |
| SR | 80 552 | 70 483 | 8 | 85 | |
| A | 65 448 | 35 241 | 20 | 72 | |
| N | 75 517 | 48 331 | 15 | 80 | |
| 4130 | HR | 90 621 | 70 483 | 20 | 89 |
| SR | 105 724 | 85 586 | 10 | 95 | |
| A | 75 517 | 55 379 | 30 | 81 | |
| N | 90 621 | 60 414 | 20 | 89 | |
| 4140 | HR | 120 855 | 90 310 | 15 | 100 |
| SR | 120 855 | 100 689 | 10 | 100 | |
| A | 80 552 | 60 414 | 25 | 85 | |
| N | 120 855 | 90 621 | 20 | 100 |
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
