Name: ASTM A513 Standard Low Carbon ERW Steel Tube for Truck Exhaust System with 19-381 mm OD Range
Brand: TORICH INTERNATIONAL LIMITED
SKU: ASTM A513
Price: 1,250.00 USD
Availability: InStock

Home > Products > Welded Steel Tube >

ASTM A513 Standard Low Carbon ERW Steel Tube for Truck Exhaust System with 19-381 mm OD Range

welded steel pipe

electric resistance welded steel tube

Place of Origin:

Zhejiang, China

Brand Name:

TORICH

Certification:

ISO

Model Number:

ASTM A513

Request A Quote

Product Details

Material:

Low Carbon ERW Steel Tube

Standard:

ASTM A513 / ASTM A513M

Typical Grades:

MT 1010, MT 1015, MT X 1015, MT 1020, MT X 1020; Other Grades Such As 1008, 1010, 1020, 1026 Available By Order

Manufacturing Process:

Electric Resistance Welded, Made From Hot-rolled Or Cold-rolled Steel Strip

Outside Diameter:

19–381 Mm; ASTM A513 Hot-rolled ERW Round Tubing Range Up To 12.7–380 Mm

Wall Thickness:

1.65–16.5 Mm For Hot-rolled ERW Range; Thinner Cold-rolled ERW Wall Sizes Available By Design

Length:

1–12 M, Fixed Length Or Random Length; Customized Cut-to-length Available

Heat Treatment:

As-welded, Stress-relieved, Normalized, Or Other Thermal Condition By Agreement

Highlight:

welded steel pipe

electric resistance welded steel tube

Payment & Shipping Terms

Minimum Order Quantity

5tons

Price

USD1000-1500

Packaging Details

Truck Exhaust System Pipes will be packed in bundle with steel strips; with seaworthy package at the end; could be done with your requirement.

Delivery Time

Payment Terms

D/A,L/C,D/P,T/T,MoneyGram,Western Union

Supply Ability

500 Ton/Tons per Month

ASTM A214 Carbon Steel Welded Tube For Heat Exchanger And Condenser

Get Best Price

video

SA178 Grade A Electric Resistance Welded Tube Carbon Manganese Steel Tube for Heat Exchanger 12.7-127 mm OD

Get Best Price

video

Brake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator

Get Best Price

video

ASTM A254 Copper Brazed Bundy Tube Single Wall Welded Tube

Get Best Price

Contact Now

Product Description

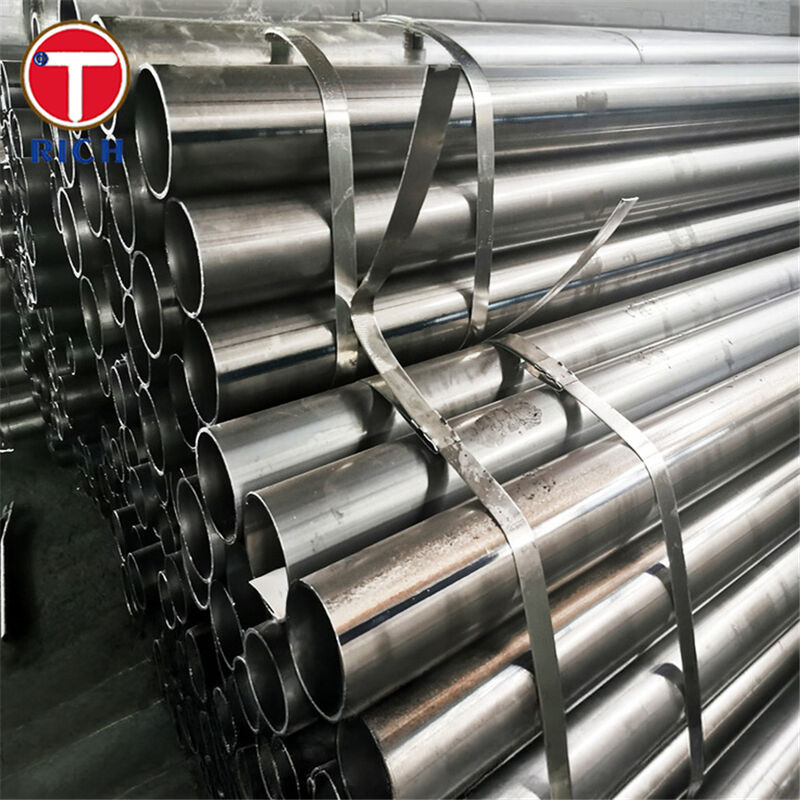

ASTM A513 Low Carbon Electric Resistance Welded (ERW) Steel Tube For Truck Exhaust System

Product Overview

ASTM A513 low carbon ERW steel tube is a cost-effective welded mechanical tubing product designed specifically for truck exhaust system applications. This tubing is ideal for straight exhaust sections, intermediate pipes, tailpipe assemblies, muffler inlet/outlet tubes, and fabricated exhaust connectors.

Manufactured from low-carbon steel strip using electric resistance welding, these tubes feature controlled OD, wall thickness, weld seam condition, straightness, and surface finish to support bending, expanding, cutting, welding, and exhaust pipe assembly operations.

Technical Specifications

Item	Description
Material	Low carbon ERW steel tube
Standard	ASTM A513 / ASTM A513M
Typical grades	MT 1010, MT 1015, MT X 1015, MT 1020, MT X 1020; other grades such as 1008, 1010, 1020, 1026 available by order
Manufacturing process	Electric Resistance Welded, made from hot-rolled or cold-rolled steel strip
Outside diameter	19-381 mm; ASTM A513 hot-rolled ERW round tubing range up to 12.7-380 mm
Wall thickness	1.65-16.5 mm for hot-rolled ERW range; thinner cold-rolled ERW wall sizes available by design
Length	1-12 m, fixed length or random length; customized cut-to-length available
Tolerance range	OD, wall thickness, length, squareness, and straightness according to ASTM A513 order requirements
Straightness	Commercial straightness or tighter straightness by agreement; suitable for automatic cutting and bending lines
Surface condition	Oiled, dry, bright, black, pickled, or coated; protective coating available for storage and shipment
Weld flash condition	Inside flash controlled, removed, or as-welded according to purchase order
Heat treatment	As-welded, stress-relieved, normalized, or other thermal condition by agreement
End finish	Plain end, deburred end, square-cut end, or chamfered end
Main application	Truck exhaust system pipe

Key Characteristics

Characteristic	Technical Description
Low-carbon formability	MT 1010 carbon range 0.02-0.15%; 1010 carbon range 0.08-0.13%; suitable for bending, expanding, flaring, and exhaust pipe forming
Controlled manganese range	MT 1010 Mn 0.30-0.60%; MT X 1020 Mn 0.70-1.00%; higher Mn grades provide improved strength while maintaining weldability
ERW weld seam	High-frequency electric resistance welded seam; flash condition can be specified to improve internal flow and reduce forming defects
Exhaust fabrication suitability	Supports mandrel bending, end forming, muffler connection, welded brackets, and pipe assembly
Dimensional capability	Regular OD range 19-381 mm and wall thickness 1.65-16.5 mm match common medium-duty and heavy-duty truck exhaust pipe requirements
Surface process compatibility	Can be supplied oiled, pickled, phosphated, aluminized, painted, or coated according to downstream exhaust system requirements
Traceable quality	Heat analysis, product analysis, dimensional inspection, and mechanical testing can be supplied according to purchase order

Manufacturing Advantages

Professional Concern	Our Solution
Weld seam quality during bending and expansion	Tubes can be ordered with controlled weld flash condition, deburred ends, and inspection of OD, wall thickness, straightness, and seam position. This helps reduce cracking, wrinkling, and local thinning during mandrel bending or exhaust pipe end forming.
Material selection for truck exhaust fabrication	For easy forming, MT 1010 or 1010 is recommended. For higher strength pipe sections, MT 1020, MT X 1020, or 1026 can be selected. Grade, thermal condition, and mechanical values can be matched to the customer's bending radius, expansion ratio, and welding process.
Stable supply for exhaust pipe production lines	Tubes can be supplied in 1-12 m lengths, fixed cut lengths, bundled packaging, and protected surface condition. Heat number traceability, MTC, dimensional report, and optional NDT can be provided for batch production control.

Chemical Composition

Grade	C %	Mn %	P max %	S max %	Notes
MT 1010	0.02-0.15	0.30-0.60	0.035	0.035	Standard low-carbon mechanical tubing grade
MT 1015	0.10-0.20	0.30-0.60	0.035	0.035	Higher carbon than MT 1010
MT X 1015	0.10-0.20	0.60-0.90	0.035	0.035	Higher manganese version
MT 1020	0.15-0.25	0.30-0.60	0.035	0.035	Medium-low carbon tubing grade
MT X 1020	0.15-0.25	0.70-1.00	0.035	0.035	Higher manganese version for improved strength

Mechanical Properties

Grade / Comparable Grade	Condition	Yield Strength min MPa	Tensile Strength min MPa	Elongation min % in 50 mm	Hardness
1008	As-welded	207	290	15	RB 50 min
1010 / MT 1010	As-welded	221	310	15	RB 55 min
1015 / MT 1015	As-welded	241	331	15	RB 58 min
1020 / MT 1020	As-welded	262	359	12	RB 62 min
1026	As-welded	310	427	12	RB 68 min

Executive Standards

ASTM A513 / A513M - ERW carbon and alloy steel mechanical tubing; main standard for this product
ASTM A370 - Mechanical testing methods for steel products
ASTM A751 - Chemical analysis methods and practices for steel products
ASTM A1008 / A1008M - Cold-rolled carbon steel sheet/strip reference material
ASTM A1011 / A1011M - Hot-rolled carbon steel sheet/strip reference material
EN 10305-3 - Welded cold-sized steel tubes for precision applications
JIS G3445 - Carbon steel tubes for machine structural purposes
GB/T 13793 - Longitudinal electric resistance welded steel pipe
GOST 10704 - Electric-welded steel line pipe dimensional reference

Application Field

Truck exhaust tailpipe assembly - ASTM A513 low carbon ERW tube can be used for straight and bent tailpipe sections connected to mufflers, resonators, flexible joints, and rear exhaust outlets.

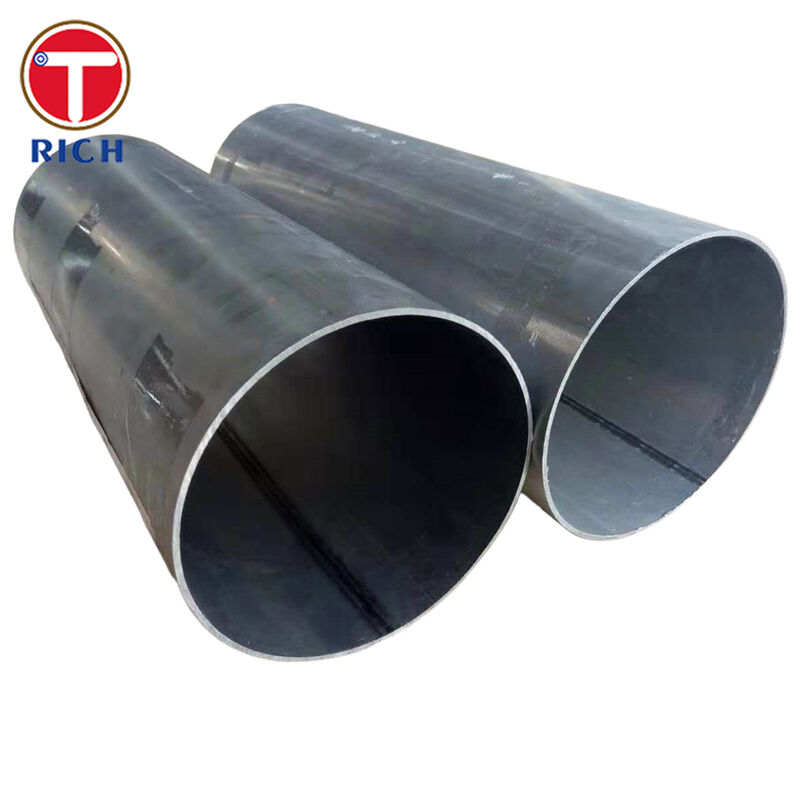

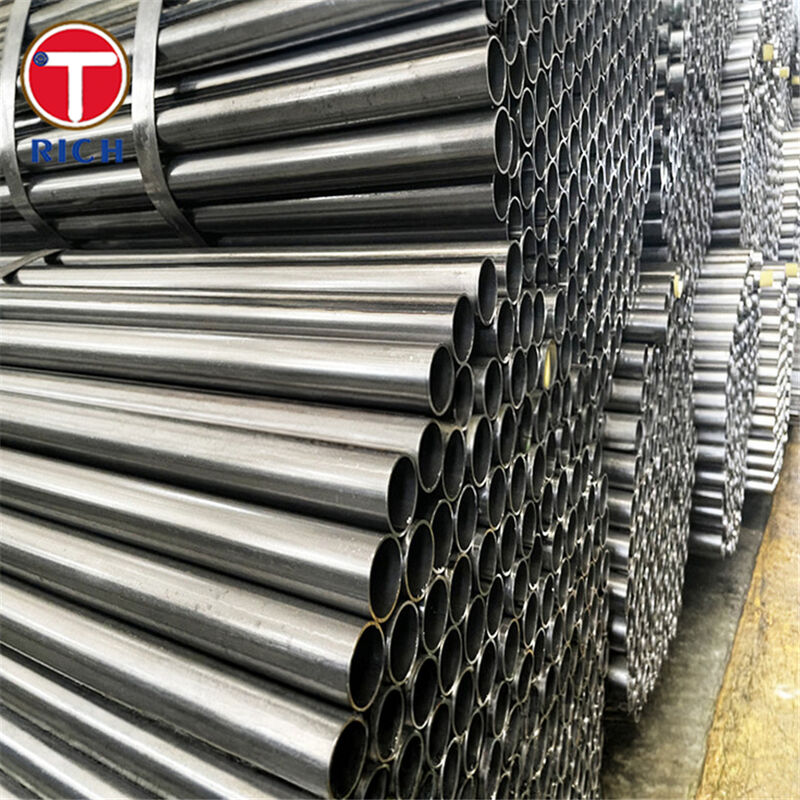

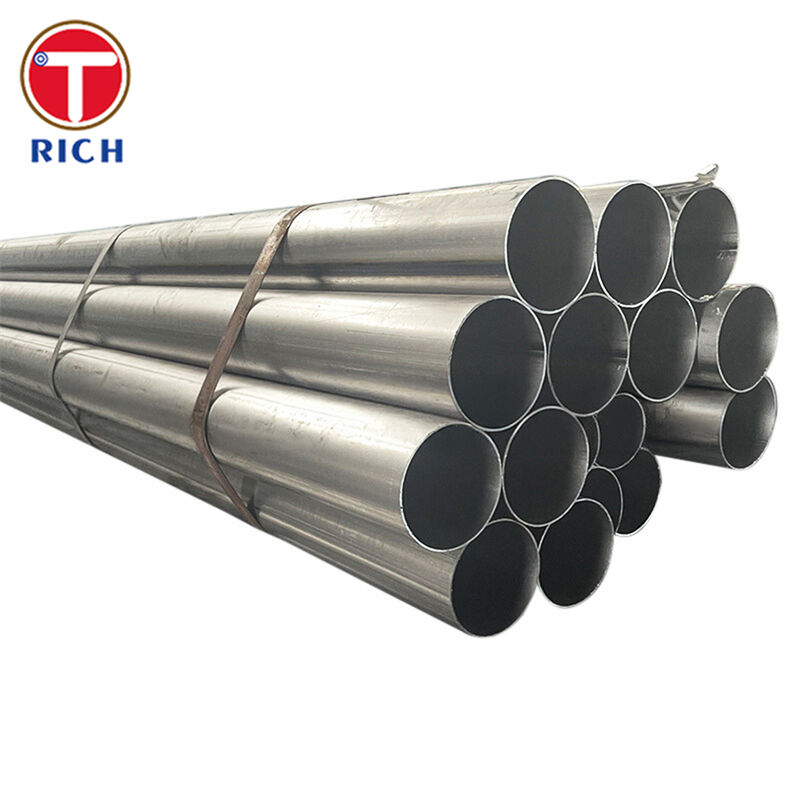

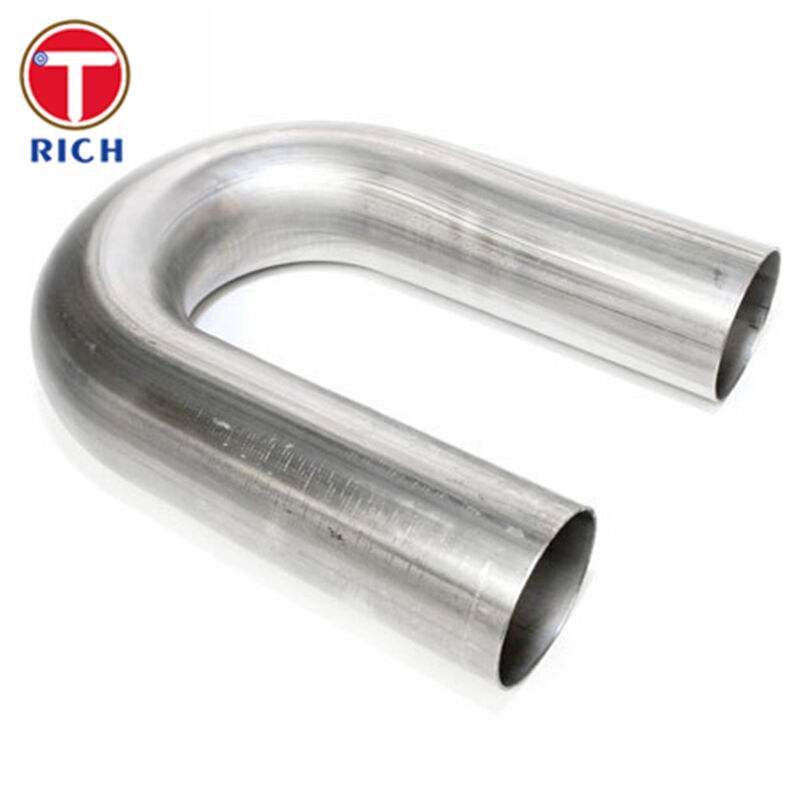

Product Gallery

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: Manufacturer, also can do trading.

Q: How long is your delivery time?

A: Generally speaking, it is 10-15 days if the goods are in stock, or it is 30-40 days if the goods are not in stock, according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment?

A: Payment <= 2000 USD, 100% in advance. Payment >= 2000 USD, 30% T/T in advance, balance before shipment. If you have another question, please feel free to contact with me.
